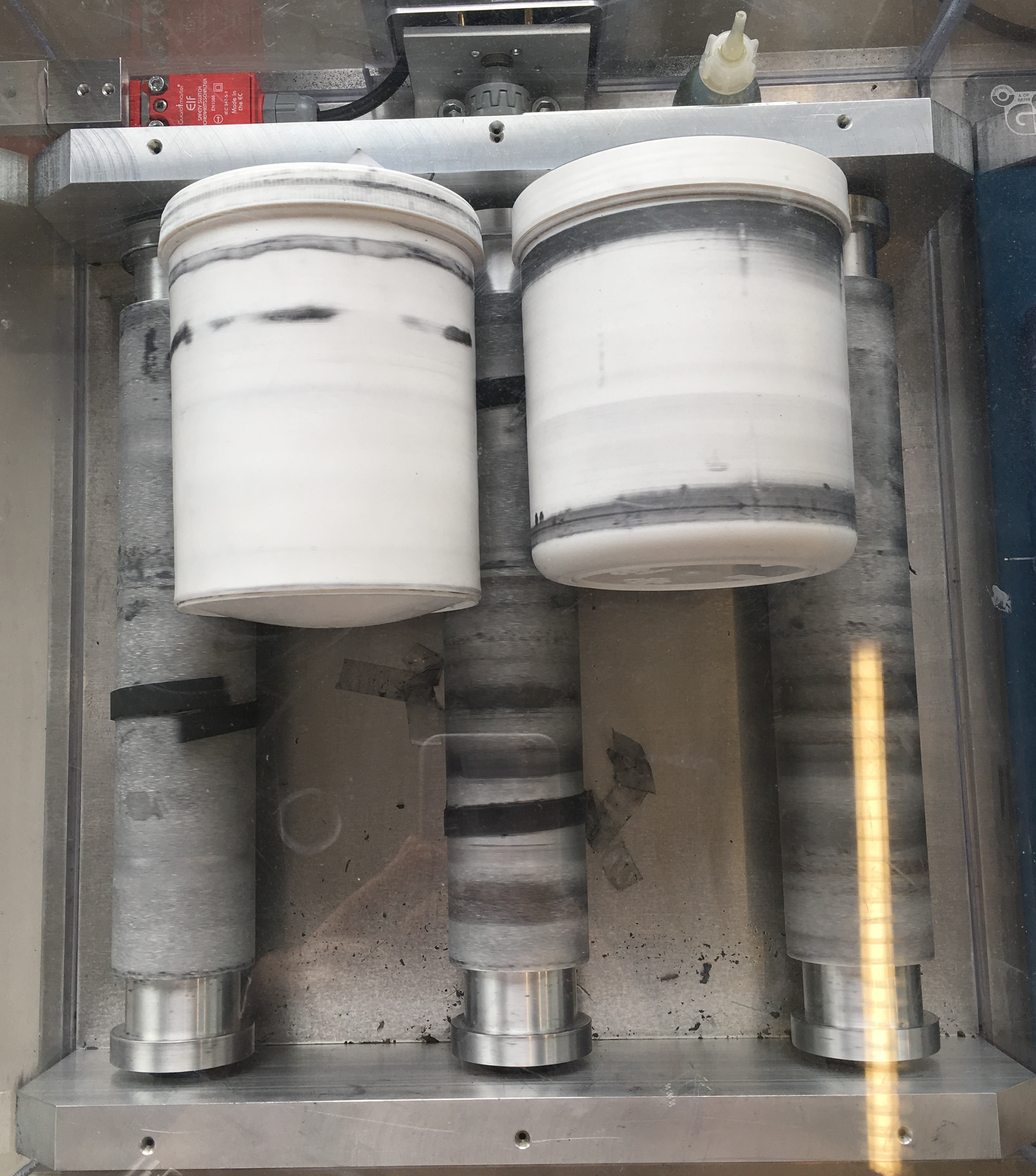

Three-Roll-Mill
Manufacturer
KIT-AME machine shop
Properties
- Homogenization, mixing und desagglomeration of pastes, particles, dispersions, emulsions
- Rotation speed 0 up to ca. 100 rpm
- 1-25 balls (zirkonium oxide)
- 4 plastic containers simultaneously
- Capacity per container 20 to 150 mL
Application
- Particles
- Dispersions
- Emulsions

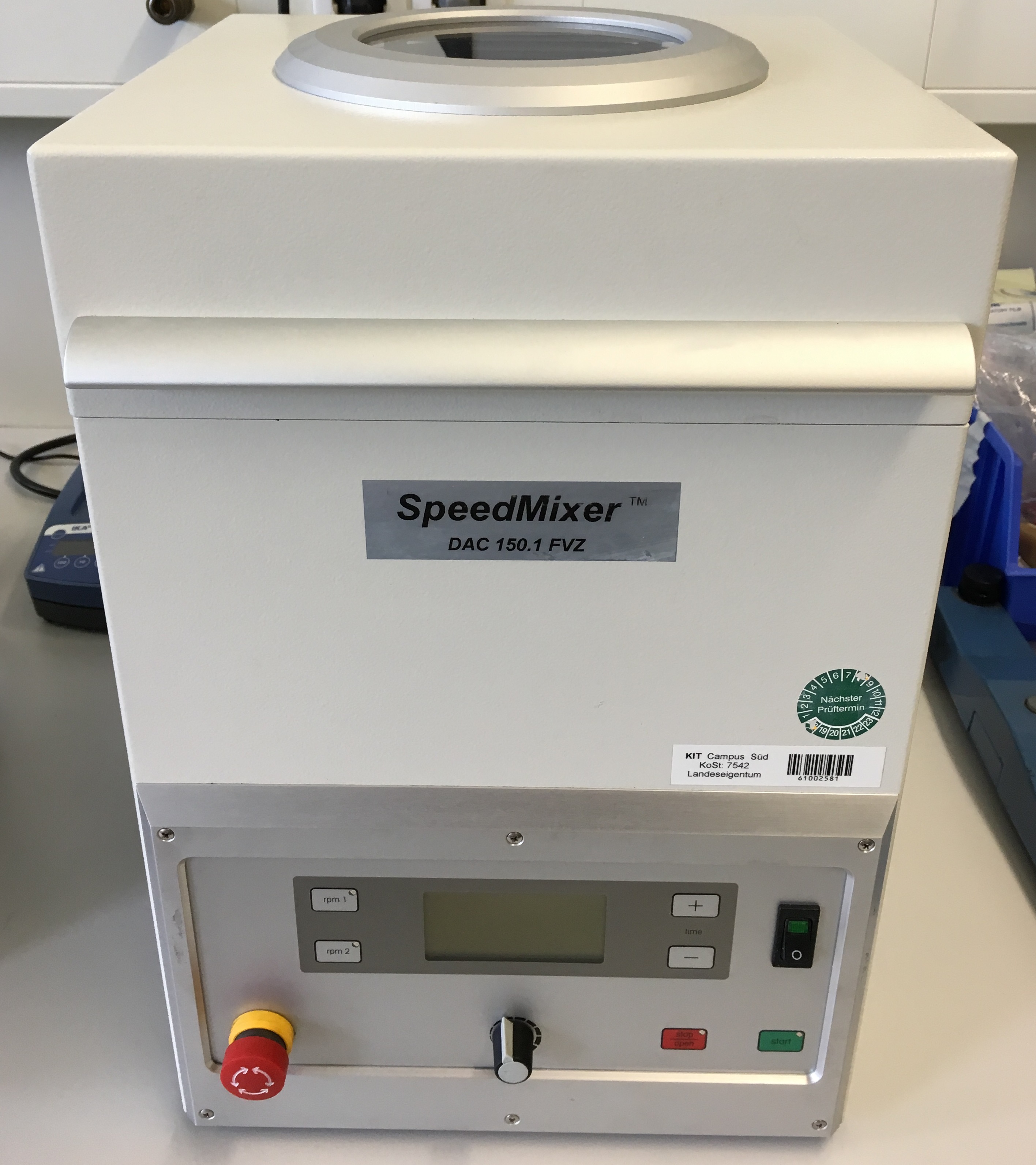

SpeedMixerTM DAC 150.1 FVZ
Manufacturer
Hauschild & Co. KG
Properties
- Homogenization, mixing und desagglomeration of pastes, particles, dispersions, emulsions
- Rotation speed 0 up to ca. 3500 rpm
- 200g capacity
Application
- Homogenization, mixing und desagglomeration of pastes, particles, dispersions, emulsions

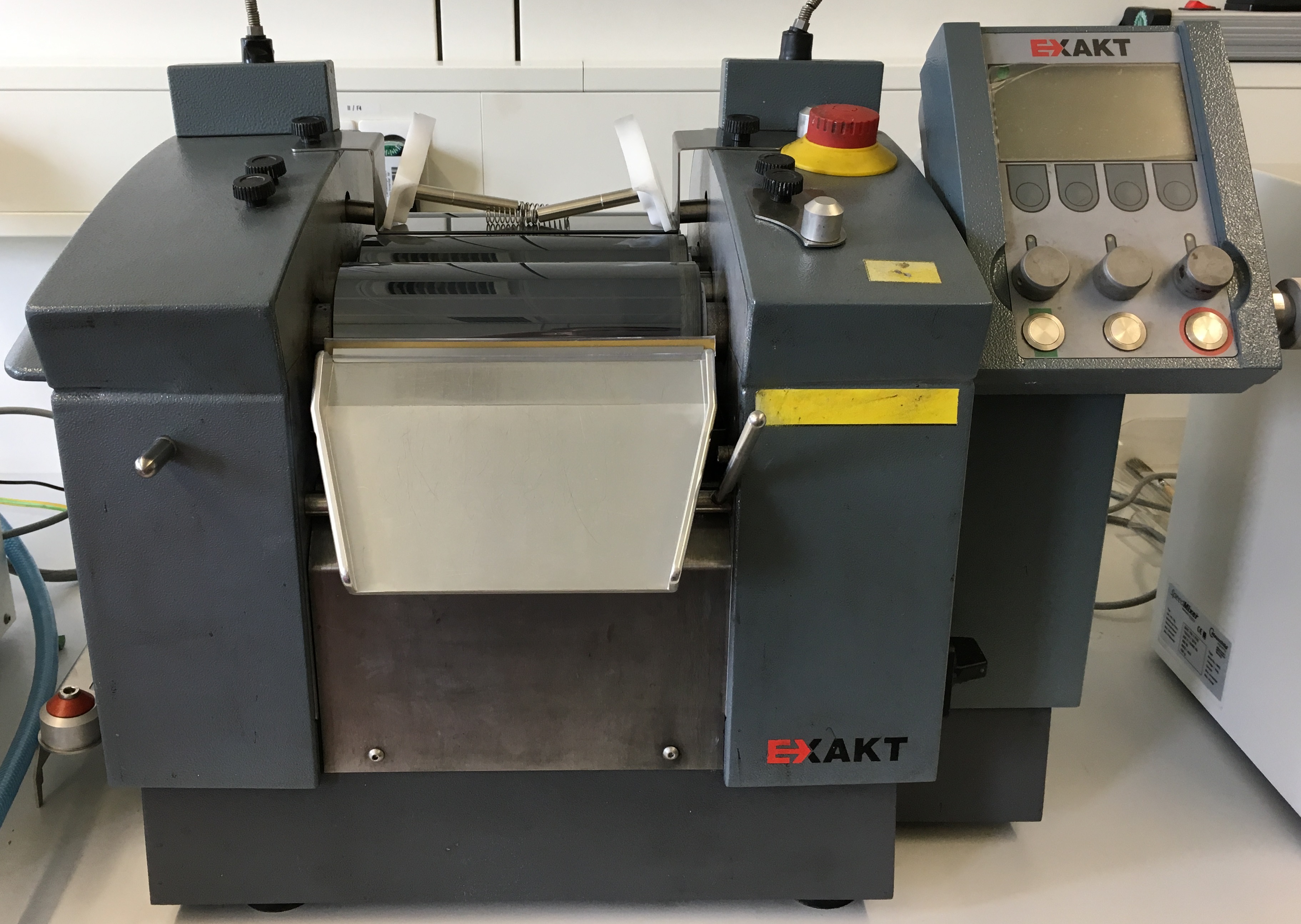

Three roll mill EXAKT 80E
Manufacturer
EXAKT Advanced Technologies GmbH
Properties
- Hardened steel rollers with hard chrome surface
- min. gap size 5 µm
- Roll diameter 80 mm
- Roll length 200 mm
Application
- Desagglomeration
- Homogenization

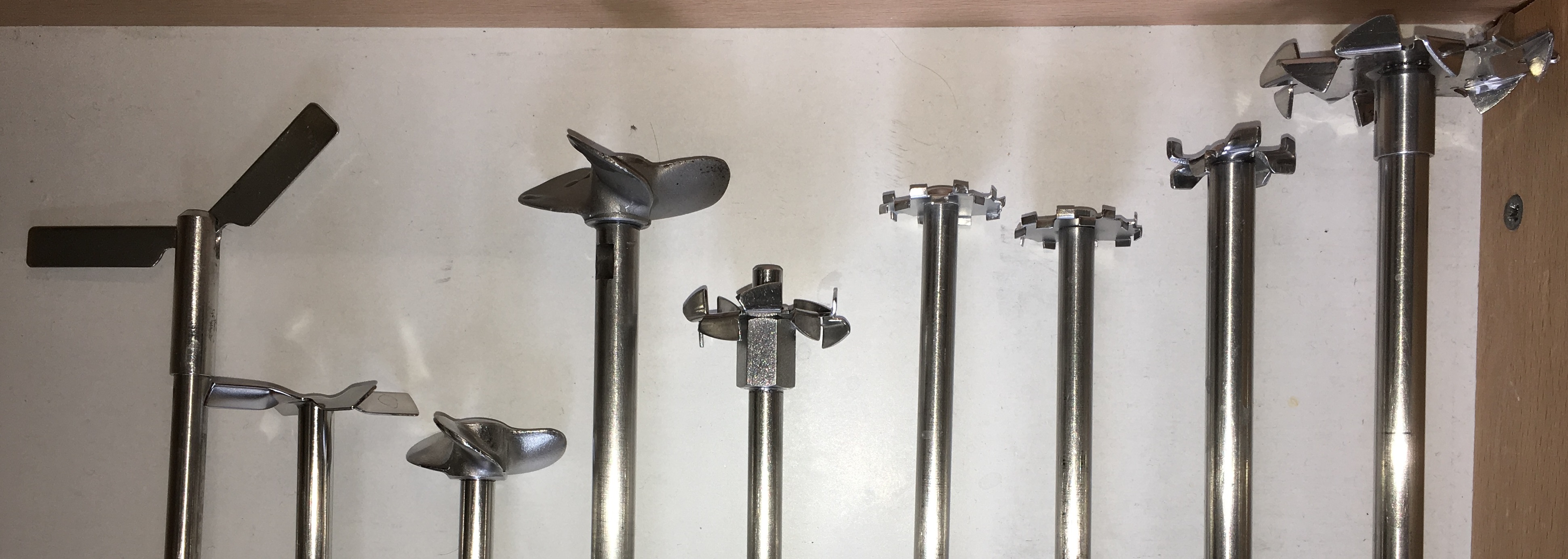

Mixing-Devices
Manufacturer
Heidolph RZR 2102 control, IKA® RW 20 digital
Properties
- Propeller, disk stirrers, dissolver with various diameters
- Rotation speed 1 up to 2.000 rpm
- Suitable for preparation of liquids and pastes with viscosities up to 1.000 mPa·s
Application
- Dispersing
- Homogenization
- Mixing of emulsions and dispersions

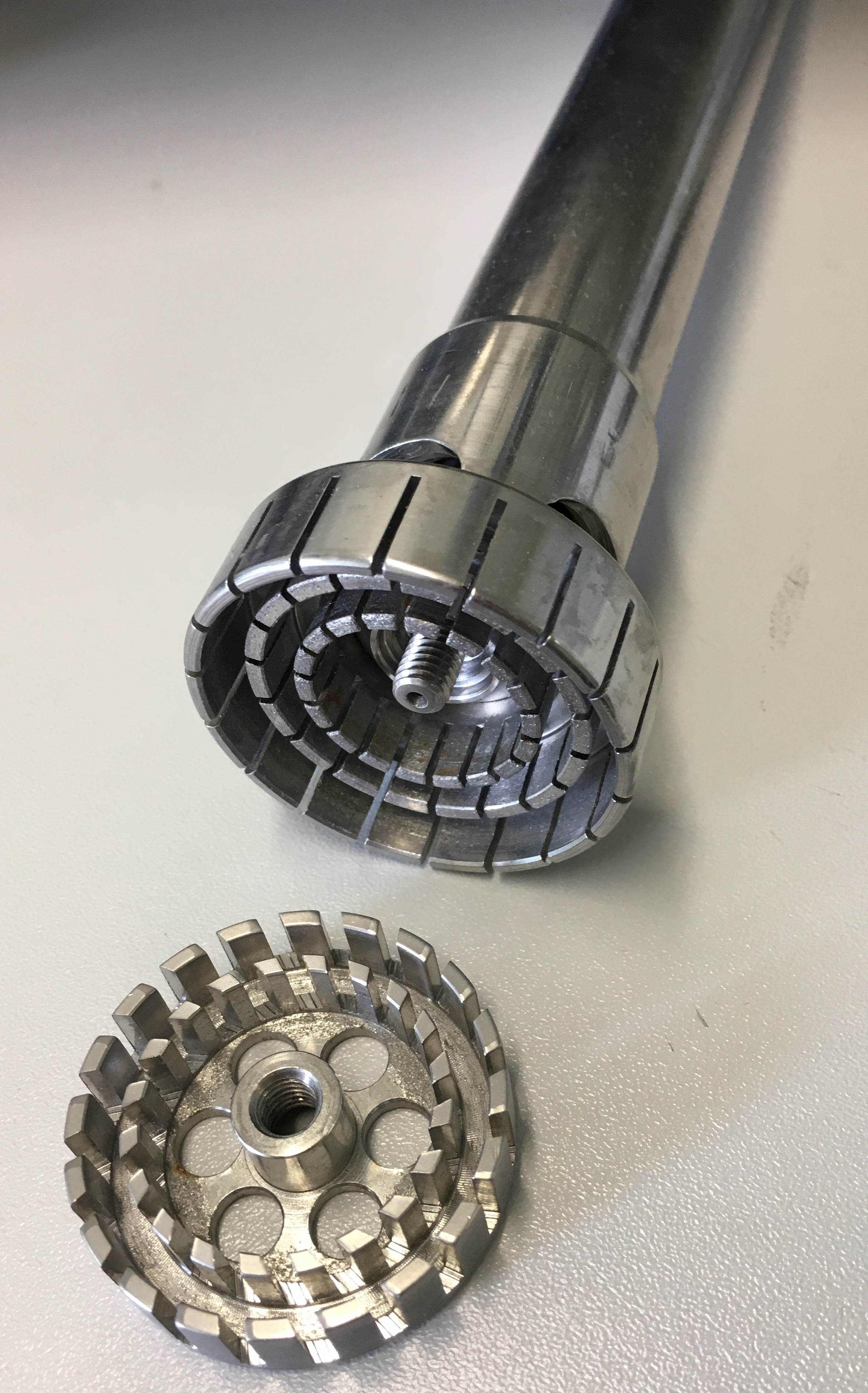

Ultra-Turrax T50
Manufacturer
Janke und Kunkel IKA®-Labortechnik
Properties
- High-disperive devise for preparation of emulsions and suspensions
- Disk stirrer with a Stator ring (diameter 4,5 cm)
- Rotation speed from 10 up to 10000 rpm
- Suitable for preparation of liquids and pastes with viscosities up to 5.000 mPa·s
Application
- Preparation of emulsions and suspensions
- Preparation of foams
